Big American Grill™ 240V


The Big American Grill™ is the largest model in the Kenyon Grill line. A three burner, built-in grill with independently controlled 1500W elements and a max output of 4500W. This powerful electric grill presents opportunities for safe grilling while still experiencing authentic grilled food. These grills meet NFPA fire code regulations and are UL approved for indoor and outdoor applications. Mounting hole variation is for installing into wood or other soft surface countertops, “no hole” mounting style is designed for a clean finish on granite or other stone counter tops. Only available in 240V, comes with hardwire connection to be directly connected to the power supply, a plug can be added as well. Automatic shut-off at 60 or 90 minutes depending on heat setting.


Included: 3 Coated Drip Trays



B70430 – w/Mounting Holes

B70432 – w/o Mounting Holes


This item ships via Freight Line Carrier.  Delivery times related to this ship method are usually between 3 to 7 business days once the item leaves the warehouse. The shipping company will contact you to arrange a delivery appointment as a delivery signature is required.




Add accessories


The double lined lid can be split to allow the user to tend to one side without losing heat on the other. IntelliKEN Touch™ control integrates swipe technology with user-friendly features such as Precision Control (PC) and Direct Temperature Feedback (DTF). These features will keep the grill to within +/-10℉ at all times. The cast aluminum grates are double coated in the longest lasting medical grade non-stick coating available and is PFOA free. The lid and grates can all be easily cleaned by placing in the dishwasher to keep your grill looking new for years to come. UL approved for use indoors and out. Constructed with high-quality, marine-grade stainless steel. Designed and produced in the USA.


For more technical information, check out the owners manual under the downloads tab below.



WARNING: California’s Proposition 65

IntelliKEN Grill Highlights

The answer to perfectly grilled food is the innovative IntelliKEN Touch™ technology. A waterproof touch control system that integrates the latest swipe technology with user-friendly features such as, Precision Control (PC) and Direct Temperature Feedback (DTF). Precision Control allows you to select the power setting (1 – 16) best suited for the food being cooked or the temperature you desire (150˚F – 550˚F), a feature never before available on a grill. Direct Temperature Feedback (DTF) gives you the ability to cook by temperature and time. Smarter grilling with better results. IntelliKEN Touch™ provides foolproof results every time. No more overcooking.

Cooking Area
Actual Weight
Estimated Shipping Weight
Lid Type
Build Type
Flange Type
Control Type

(3) Independent 1500W elements Total 4500W


20 amps.

Specifications & Dimensions

Why You'll Love It...

  • Comes standard with three grates
  • Upgraded coated drip trays are located below the elements to trap drippings
  • IntelliKEN Touch™ Control system that integrates the latest swipe technology
  • Preheats in 7 minutes
  • Patented concealed electric elements eliminate flare-ups
  • Powerful performance - cooking temperatures exceed 550˚F for perfect searing
  • No hot or cold zones due to direct contact between element and cooking grate
  • Non-stick grates imparts characteristic barbeque grill marks and is dishwasher safe
  • Select between 16 different heat settings for the perfect temperature every time
  • Smooth flange for installation in stone countertops
  • Removable insulated split lids helps prevent accidental burns and is dishwasher safe
  • Independent waterproof digital touch control panel
  • Precision Control allows the user to select the power setting (1-16) or temperature (150˚F - 550˚F)
  • Switch from Fahrenheit to Celsius with a simple push of a button
  • Keep track of kitchen tasks that are independent of cooking activity on the grill with the kitchen timer
  • Automatic shut-off at 60 or 90 minutes depending on heat setting
  • The safety lock can be activated at any time when grilling to prevent accidental changes
  • Choose the perfect setting by swiping your finger along the temperature control arc
  • Direct Temperature Feedback (DTF) gives the user ability to cook by temperature and time
  • Marine-grade 304 stainless is passivated to be weather resistant and rust proof
  • Only Available in 240 Volts
  • 3-Year product replacement warranty

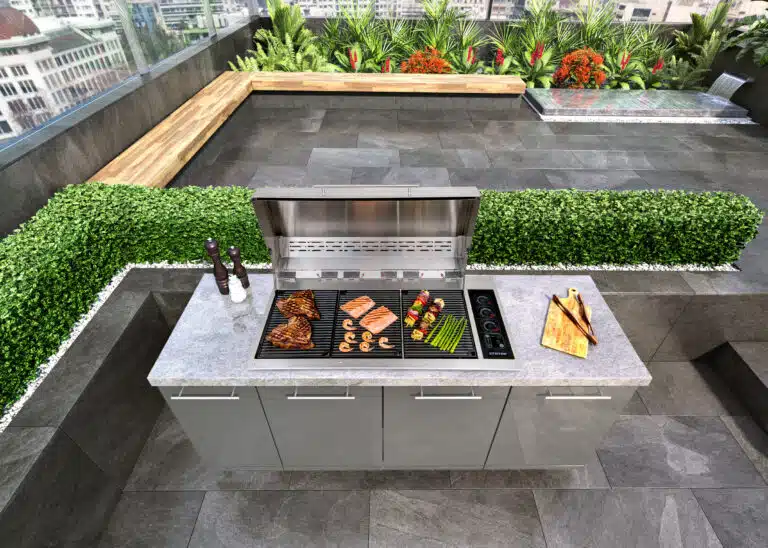

Capacity of the Big American Grill™

The 465sq. inch cooking area of the Big American Grill™ lend it to large parties or informal gatherings. Equipped with everything you need to grill an entire meal. Grill simultaneously at different heat levels, from searing steaks on the grate to gently grilling vegetables on the griddle.

12-18 people

Image for capacity demonstration purposes only. Actual product model and features may vary.
